Engineering Piping Systems P&ID and 3D design ensuring integration and coordination.
Key Points:

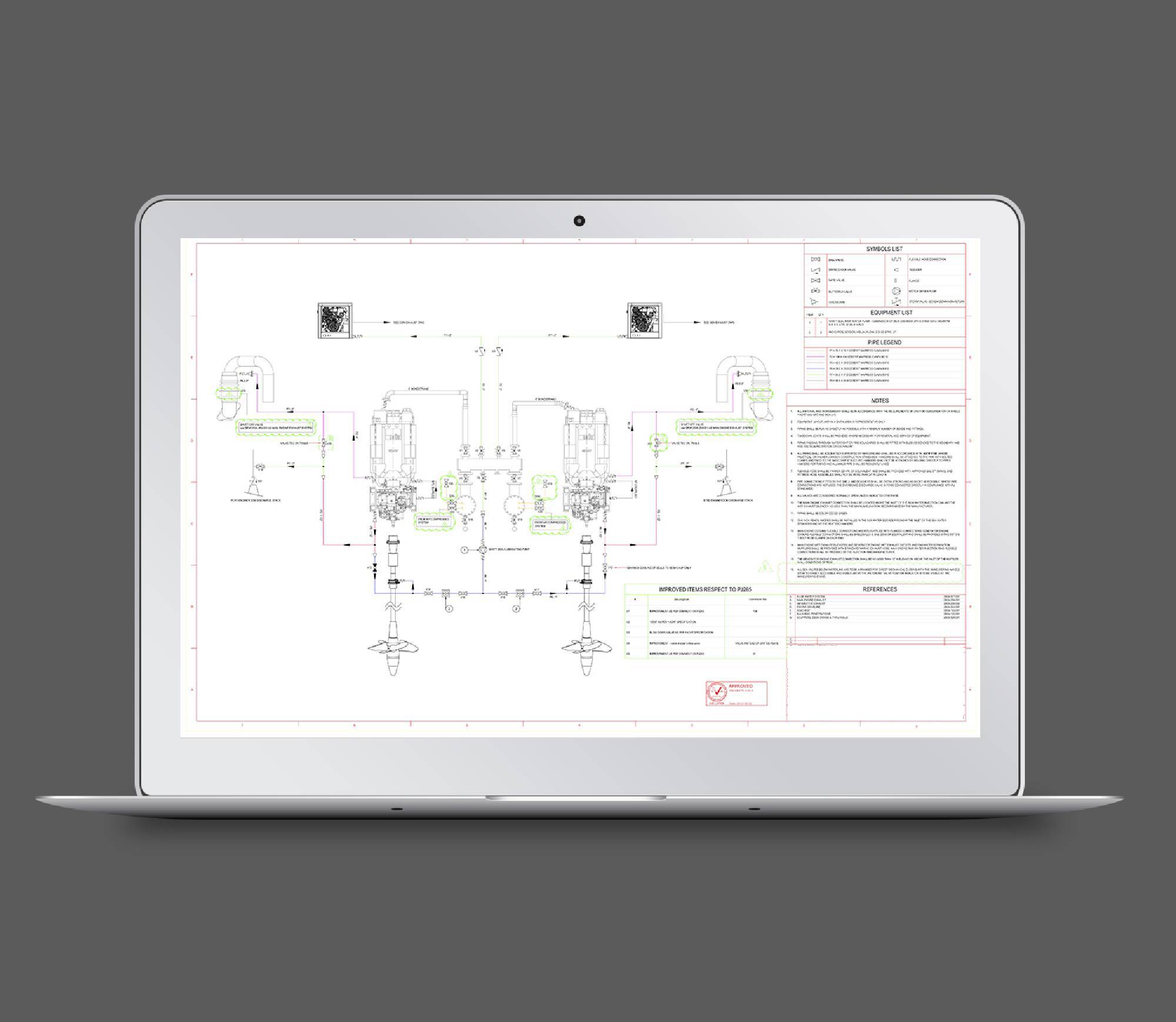

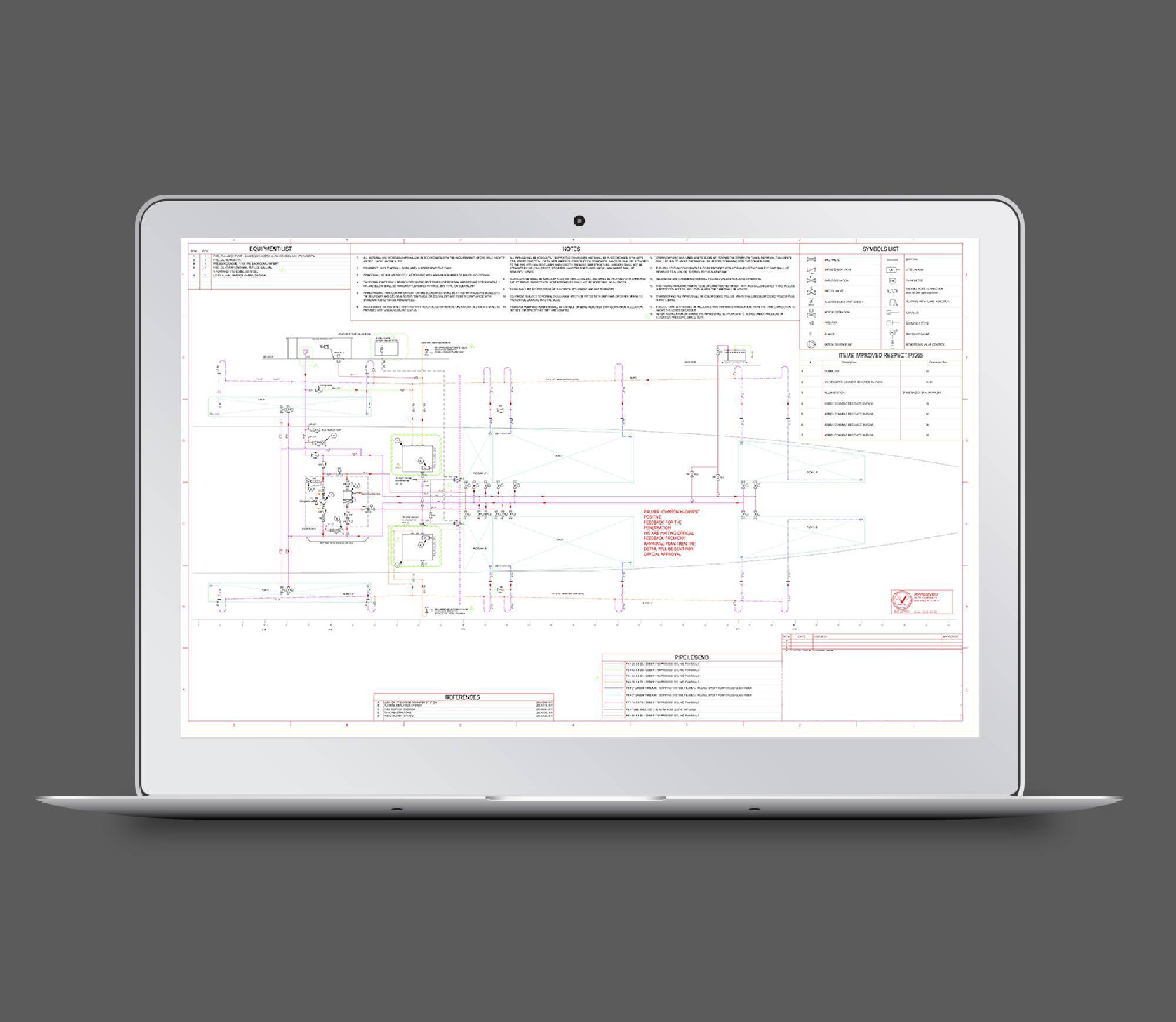

- Develop Piping & Instrumentation Diagrams (P&ID)
- Define piping engineering specifications to drive the part selection process and ensure the integrity of systems
- Define arrangement and 3D system layout
Create and synchronize detail design with interior design.
Validate, analyze, and simulate piping and HVAC systems.

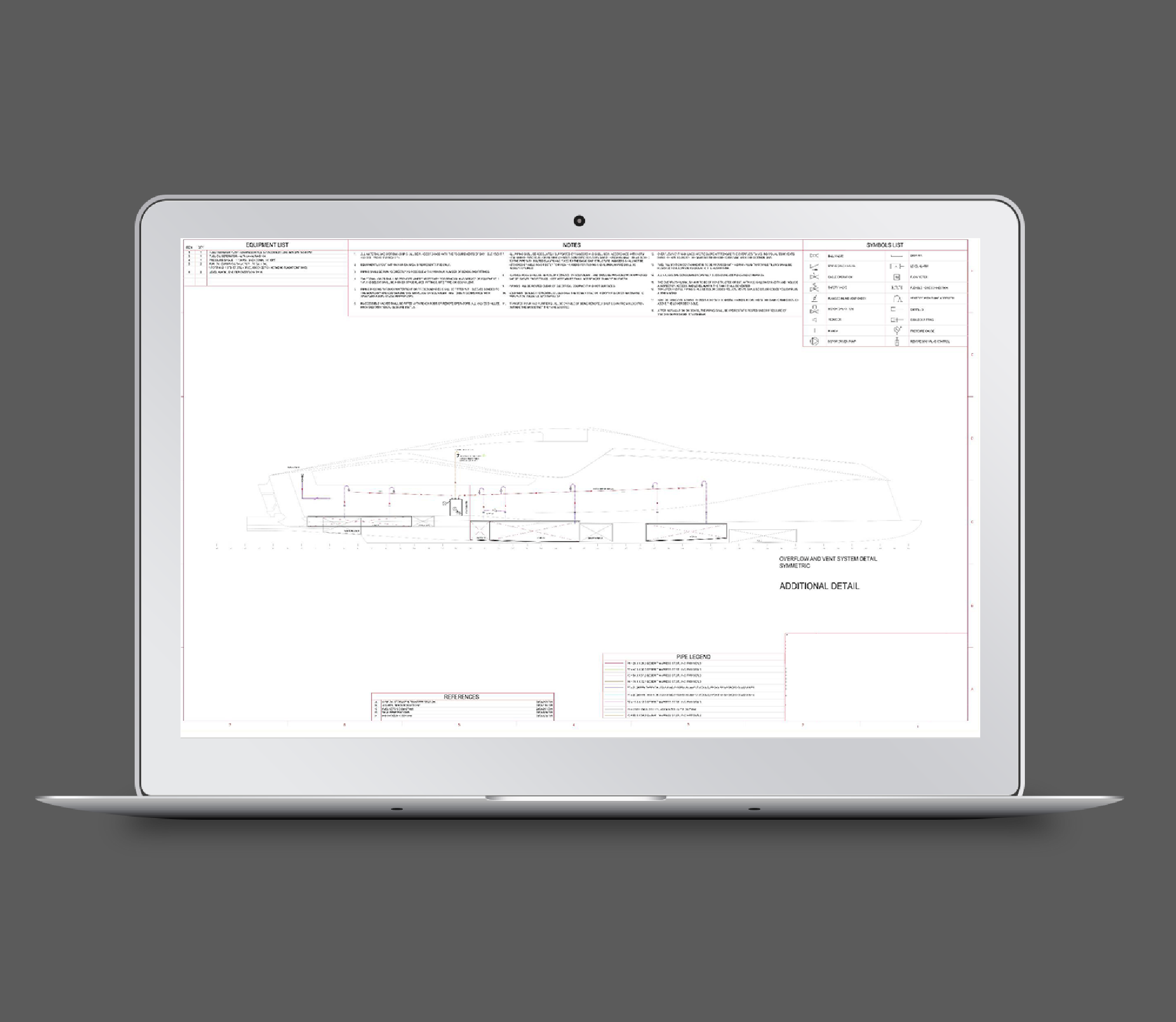

Generate Piping and HVAC drawings such as installation and fabrication drawings.
